Strobe flasher assy installed, 08/06/00 |
Started fitting the canopy frame, 08/06/00 |

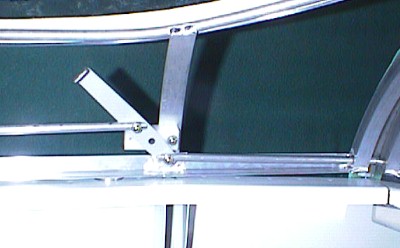

Canopy latch completed, 08/12/00 |

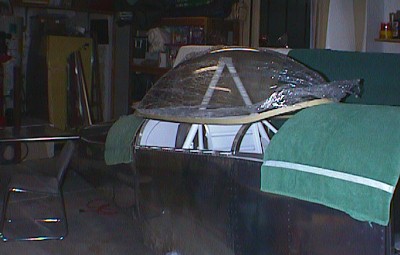

Fitting the canopy, 08/14/00 |
Canopy skins fitted and drilled ready for final assy, 08/22/00 |

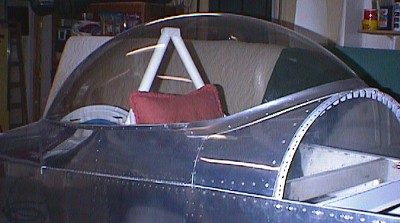

Canopy almost completed, 09/15/00 |
Close up of the canopy faring, 10/01/00 |
Canopy completed, 10/01/00 |
Fuel selector/gauge and switch/breaker panel being fabricated, 09/05/00 |
Close up of the switch and circuit breaker panel, 09/05/00 |
Brake system completed, 10/03/00 |
Most of the switches and breakers installed, 10/12/00 |
Throttle/mixture controls installed, 10/12/00 |
Instrument panel template in place, 10/12/00 |
Instrument panel cut, 12/12/00 |
Some instruments installed, 12/22/00 |

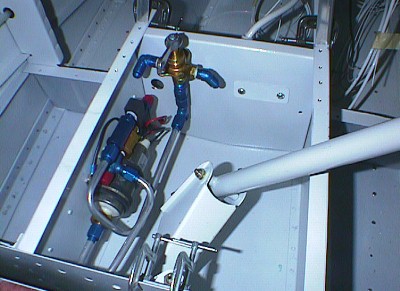

Stated install of high pressure fuel boost pump, 02/11/01 |
Build battery box and installed battery, 02/22/01 |
Built the avonics panel, 02/23/01 |
Started wiring, 02/23/01 |
Rear view of instruments, 02/23/01 |
Good view of current cockpit progress, 02/24/01 |

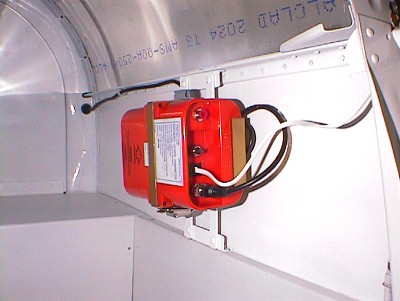

ELT installed in baggage compartment, 02/25/01 |
Wiring the switch assy, 03/15/01 |
Wiring the instrument panel (GPS), 03/16/01 |
Wiring the instrument panel (engine instruments), 03/16/01 |
Working on the avonics panel, 03/19/01 |
Working on the avonics panel, 03/19/01 |

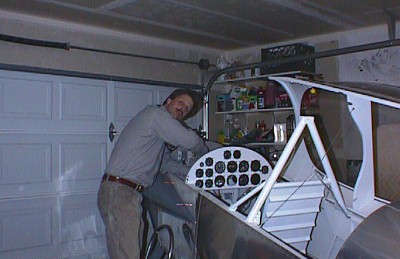

Picture of me doing the wiring, 03/20/01 |
Another picture of me doing the wiring, 03/20/01 |
The avonics panel installed, 03/25/01 |
Behind the instrument panel, 03/25/01 |
Debugging the avonics panel, 04/05/01 |
The fresh air vent installed, 04/06/01 |

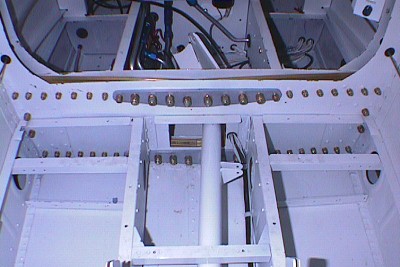

Wing spar and wiring, 06/06/01 |
Wing spar and wiring, 06/06/01 |

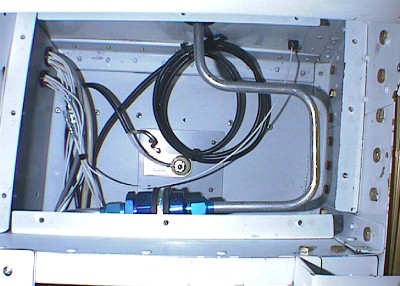

Fuel filter and comm antenna mount, 06/10/01 |
Switch panel completed, 06/10/01 |

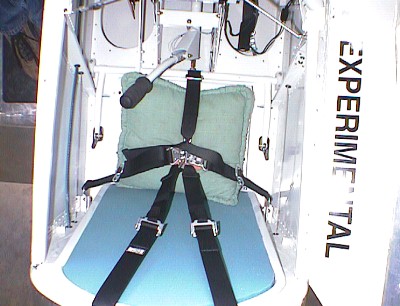

Rear seat, 06/20/01 |
Front seat, 06/20/01 |
Completed cockpit, 06/20/01 |
Made front seat cushions, 10/15/01 |
Made rear seat cushions, 10/15/01 |
Canopy latch, 11/16/01 |
Canopy latch, 11/16/01 |
Canopy latch, 11/16/01 |
Rear seat rudder peddles, 11/16/01 |
Rear seat rudder peddles, 11/16/01 |
